DTEN D7 - All-In-One Solution for Zoom Room

Plug & Play Video Conferencing Solution for Unparalleled Collaborations

The DTEN D7 is an award-winning, all-in-one, plug and play video conferencing solution for unparalleled collaborations.

Windows based all-in-one, simple and flexible

Complete with all core components for a seamless Zoom Rooms for Touch experience. Easily set-up and start your meetings in about 15 minutes right out of the box, no technician. Cutting-edge collaboration solution for any meeting space at a budget-friendly rate.

The best all-in-one video collaboration solution

DTEN has breakthrough hardware communications technology and best-of-breed video collaboration software, Zoom Rooms.

+Best-in-class 16-microphone array for crystal clear voice

+4K wide angle camera provides face-to-face in-room meeting experience

+Proprietary DSP from DTEN and Zoom keeps voices crystal clear and background noise to a minimum

Specs - DTEN D7

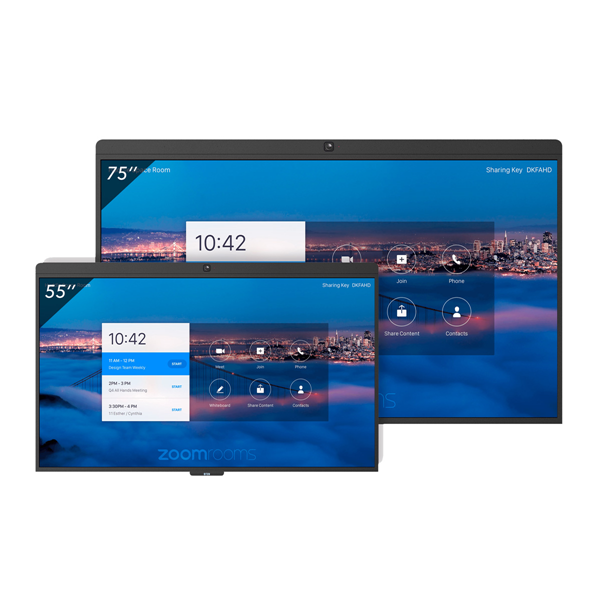

D7 55" / 75"

SOFTWARE - Windows IoT

ALL-IN-ONE - Multi-Touch Display, 4K Camera, 16-Microphone Array, Integrated Speakers

DISPLAY - Ultra HD 4K, 16:9, Capacitive Touch Screen Display

CAMERA SYSTEM - Fixed Lens, Infinite Focus, F-value: 2.8, 4K, Diagonal Field of View (FOV): Up tp 120 Degrees

AUDIO SYSTEM - 16 Elements Microphone Array, Integrated Stereo Speakers, Acoustic Echo Cancellation, Automatic Gain Control (AGC), Automatic Noise Reduction

NETWORK - Ethernet (RJ-45) 100/1000 Mbps, Wi-Fi 802.11a/b/g/n, 802.11ac (2.4 and 5   GHz), IPv4 Dynamic Host Configuration Pro-tocol (DHCP)/ Static, HTTP   Proxy Support

INPUTS AND OUTPUTS - HDMI Out x 1, HDMI In x 1, USB 3.0 x 2, 3.5-mm Audio Jack x 1, Microphone x 1, Ethernet LAN (RJ45) x 1

POWER - 100 to 240 VAC, 50 to 60 Hz

PRODUCT DIMENSIONS - (H X W X D) 55": 49 x 30.5 x 2.13 in (124.49 x 77.38 x 5.42cm),  75": 66.1 x 37.9 x 2.19 in (167.87 x 96.29 x 5.54 cm)

PRODUCT WEIGHT - 55": 50.7 lb (23 kg), 75": 83.6 lb (38 kg)
